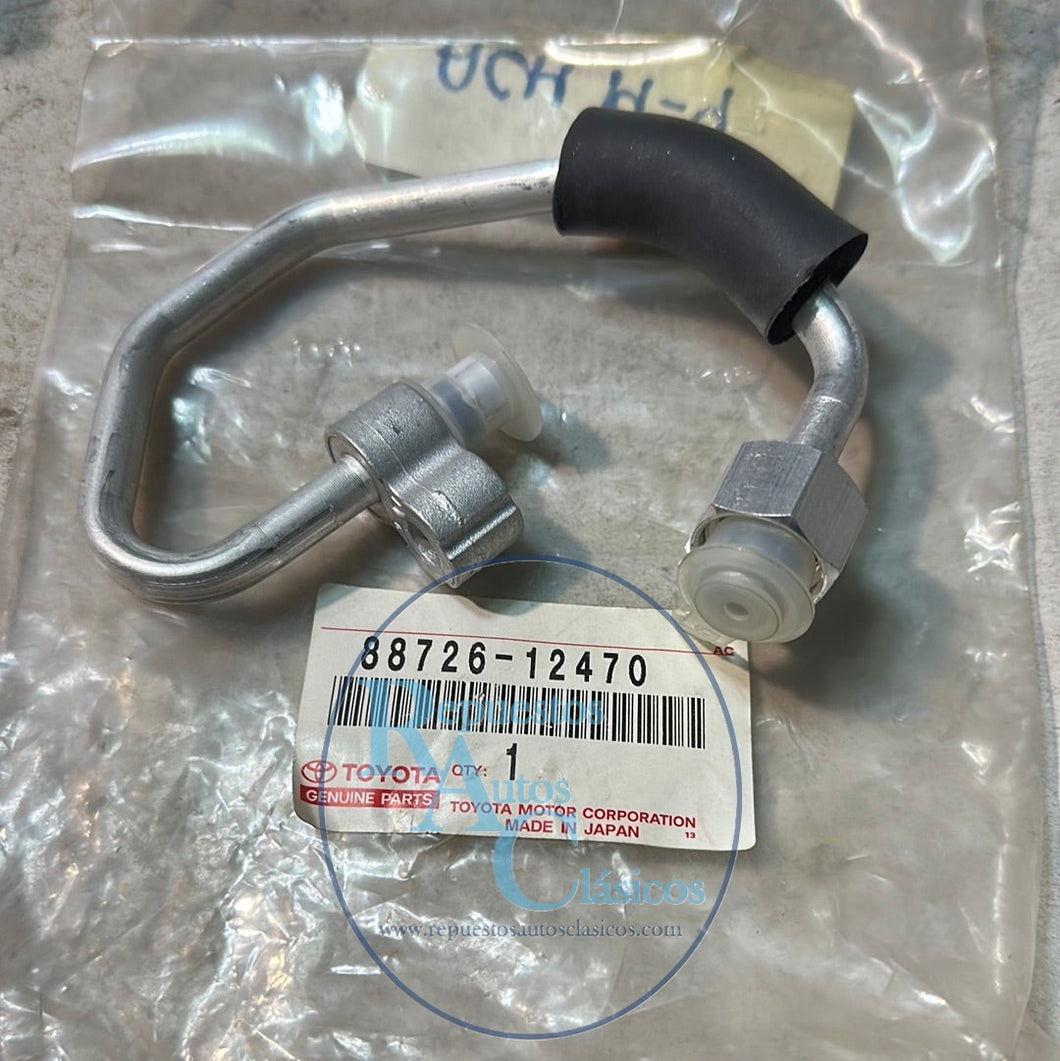

88726-12470 HEATING & AIR CONDITIONING - COOLER PIPING, toyota, Date range Model Frames/Options Found in diagram
05/1997-08/2001 TOYOTA COROLLA AE11*,CDE110,CE110,EE11*,WZE110,ZZE11* 87-18: HEATING & AIR CONDITIONING - COOLER PIPING
Model Dates: Matching Models: Model Options: Links to diagrams:
04/1997-09/1999 AE111L-AEMDKW TERRA, EUR, SED, LHD, 4AFE, MTM, 5F 87-18 87-18
08/1998-09/1999 AE111L-AEMNKW LUNA, EUR, SED, LHD, 4AFE, MTM, 5F 87-18 87-18
04/1997-09/1999 AE111L-AEPDKW TERRA, EUR, SED, LHD, 4AFE, ATM, 4FC 87-18 87-18
08/1998-09/1999 AE111L-AEPNKW LUNA, EUR, SED, LHD, 4AFE, ATM, 4FC 87-18 87-18
04/1997-09/1999 AE111L-AWMDKW TERRA, EUR, WG, LHD, 4AFE, MTM, 5F 87-18 87-18
08/1998-09/1999 AE111L-AWMNKW LUNA, EUR, WG, LHD, 4AFE, MTM, 5F 87-18 87-18
04/1997-09/1999 AE111L-AWPDKW TERRA, EUR, WG, LHD, 4AFE, ATM, 4FC 87-18 87-18
08/1998-09/1999 AE111L-AWPNKW LUNA, EUR, WG, LHD, 4AFE, ATM, 4FC 87-18 87-18
04/1997-09/1999 AE111R-AEMDKW TERRA, EUR, SED, RHD, 4AFE, MTM, 5F 87-18 87-18
08/1998-09/1999 AE111R-AWMNKW LUNA, EUR, WG, RHD, 4AFE, MTM, 5F 87-18 87-18
04/1997-09/1999 AE115L-AWMDKW TERRA, EUR, WG, LHD, 7AFE, MTM, 5F 87-18 87-18
10/1999-06/2001 AE115L-AWMNKW SOL, EUR, WG, LHD, 7AFE, MTM, 5F 87-18 87-18
08/2000-08/2001 CDE110L-AEMNYW SOL, EUR, SED, LHD, 1CDFTV, MTM, 5F 87-18 87-18
08/2000-08/2001 CDE110L-AWMDYW TERRA, EUR, WG, LHD, 1CDFTV, MTM, 5F 87-18 87-18
08/2000-08/2001 CDE110L-AWMNYW SOL, EUR, WG, LHD, 1CDFTV, MTM, 5F 87-18 87-18
08/2000-06/2001 CDE110R-AEMDYW TERRA, EUR, SED, RHD, 1CDFTV, MTM, 5F 87-18 87-18
08/2000-06/2001 CDE110R-AWMDYW TERRA, EUR, WG, RHD, 1CDFTV, MTM, 5F 87-18 87-18
04/1997-09/1999 CE110L-AEMDEW TERRA, EUR, SED, LHD, 2CE, MTM, 5F 87-18 87-18
04/1997-09/1999 CE110L-AWMDEW TERRA, EUR, WG, LHD, 2CE, MTM, 5F 87-18 87-18
08/1998-09/1999 CE110L-AWMNEW LUNA, EUR, WG, LHD, 2CE, MTM, 5F 87-18 87-18
04/1997-09/1999 CE110R-AEMDEW TERRA, EUR, SED, RHD, 2CE, MTM, 5F 87-18 87-18
04/1997-09/1999 CE110R-AWMDEW TERRA, EUR, WG, RHD, 2CE, MTM, 5F 87-18 87-18
04/1997-09/1999 EE110L-AEMDSW TERRA, EUR, SED, LHD, 2E, MTM, 5F 87-18 87-18
04/1997-09/1999 EE111L-AEHDKW TERRA, EUR, SED, LHD, 4EFE, ATM, 3FC 87-18 87-18
04/1997-09/1999 EE111L-AEMDKW TERRA, EUR, SED, LHD, 4EFE, MTM, 5F 87-18 87-18
08/1998-09/1999 EE111L-AEMNKW LUNA, EUR, SED, LHD, 4EFE, MTM, 5F 87-18 87-18
04/1997-09/1999 EE111L-AEMRKW STD, EUR, SED, LHD, 4EFE, MTM, 5F 87-18 87-18
04/1997-09/1999 EE111L-AWHDKW TERRA, EUR, WG, LHD, 4EFE, ATM, 3FC 87-18 87-18
04/1997-09/1999 EE111L-AWMDKW TERRA, EUR, WG, LHD, 4EFE, MTM, 5F 87-18 87-18
08/1998-09/1999 EE111L-AWMNKW LUNA, EUR, WG, LHD, 4EFE, MTM, 5F 87-18 87-18
04/1997-09/1999 EE111R-AEHDKW TERRA, EUR, SED, RHD, 4EFE, ATM, 3FC 87-18 87-18
04/1997-09/1999 EE111R-AEMDKW TERRA, EUR, SED, RHD, 4EFE, MTM, 5F 87-18 87-18
04/1997-09/1999 EE111R-AWMDKW TERRA, EUR, WG, RHD, 4EFE, MTM, 5F 87-18 87-18
01/2000-06/2001 WZE110L-AEMDSW TERRA, EUR, SED, LHD, 1WZ, MTM, 5F 87-18 87-18
01/2000-06/2001 WZE110L-AWMDSW TERRA, EUR, WG, LHD, 1WZ, MTM, 5F 87-18 87-18
01/2000-06/2001 WZE110L-AWMNSW SOL, EUR, WG, LHD, 1WZ, MTM, 5F 87-18 87-18
01/2000-06/2001 WZE110R-AEMDSW TERRA, EUR, SED, RHD, 1WZ, MTM, 5F 87-18 87-18
01/2000-06/2001 WZE110R-AWMDSW TERRA, EUR, WG, RHD, 1WZ, MTM, 5F 87-18 87-18
10/1999-08/2001 ZZE111L-AEMDKW TERRA, EUR, SED, LHD, 4ZZFE, MTM, 5F 87-18 87-18
10/1999-08/2001 ZZE111L-AEMNKW SOL, EUR, SED, LHD, 4ZZFE, MTM, 5F 87-18 87-18
10/1999-08/2001 ZZE111L-AEMRKW STD, EUR, SED, LHD, 4ZZFE, MTM, 5F 87-18 87-18
10/1999-08/2001 ZZE111L-AWMDKW TERRA, EUR, WG, LHD, 4ZZFE, MTM, 5F 87-18 87-18
10/1999-06/2001 ZZE111L-AWMNKW SOL, EUR, WG, LHD, 4ZZFE, MTM, 5F 87-18 87-18
10/1999-06/2001 ZZE111R-AEMDKW TERRA, EUR, SED, RHD, 4ZZFE, MTM, 5F 87-18 87-18
10/1999-06/2001 ZZE111R-AWMDKW TERRA, EUR, WG, RHD, 4ZZFE, MTM, 5F 87-18 87-18
10/1999-08/2001 ZZE112L-AEMDKW TERRA, EUR, SED, LHD, 3ZZFE, MTM, 5F 87-18 87-18
10/1999-08/2001 ZZE112L-AEMNKW SOL, EUR, SED, LHD, 3ZZFE, MTM, 5F 87-18 87-18
10/1999-08/2001 ZZE112L-AEPDKW TERRA, EUR, SED, LHD, 3ZZFE, ATM, 4FC 87-18 87-18
10/1999-08/2001 ZZE112L-AEPNKW SOL, EUR, SED, LHD, 3ZZFE, ATM, 4FC 87-18 87-18
10/1999-08/2001 ZZE112L-AWMDKW TERRA, EUR, WG, LHD, 3ZZFE, MTM, 5F 87-18 87-18
10/1999-08/2001 ZZE112L-AWMNKW SOL, EUR, WG, LHD, 3ZZFE, MTM, 5F 87-18 87-18
10/1999-08/2001 ZZE112L-AWPDKW TERRA, EUR, WG, LHD, 3ZZFE, ATM, 4FC 87-18 87-18
10/1999-08/2001 ZZE112L-AWPNKW SOL, EUR, WG, LHD, 3ZZFE, ATM, 4FC 87-18 87-18
10/1999-06/2001 ZZE112R-AEMDKW TERRA, EUR, SED, RHD, 3ZZFE, MTM, 5F 87-18 87-18
10/1999-06/2001 ZZE112R-AWMNKW SOL, EUR, WG, RHD, 3ZZFE, MTM, 5F 87-18 87-18
05/1997-10/2001 TOYOTA COROLLA AE111,CDE110,CE110,EE111,WZE110,ZZE11* 87-18: HEATING & AIR CONDITIONING - COOLER PIPING
